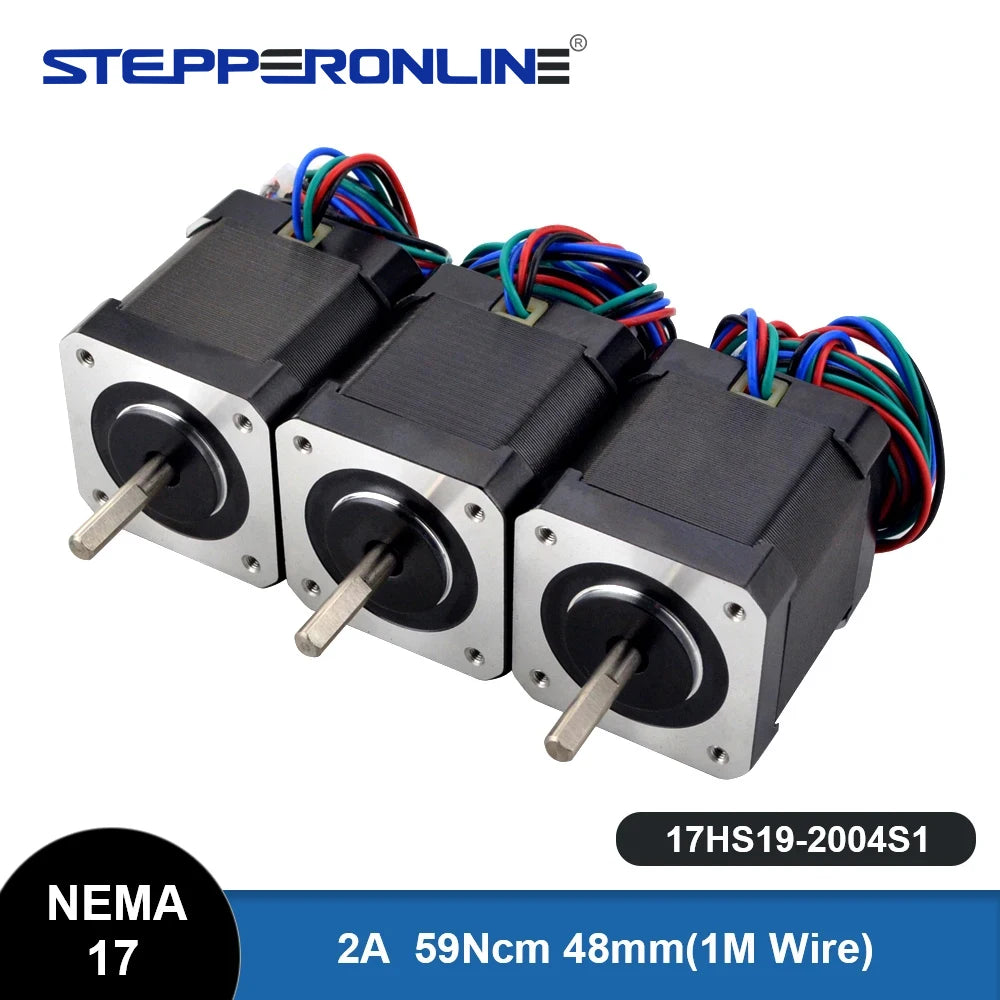

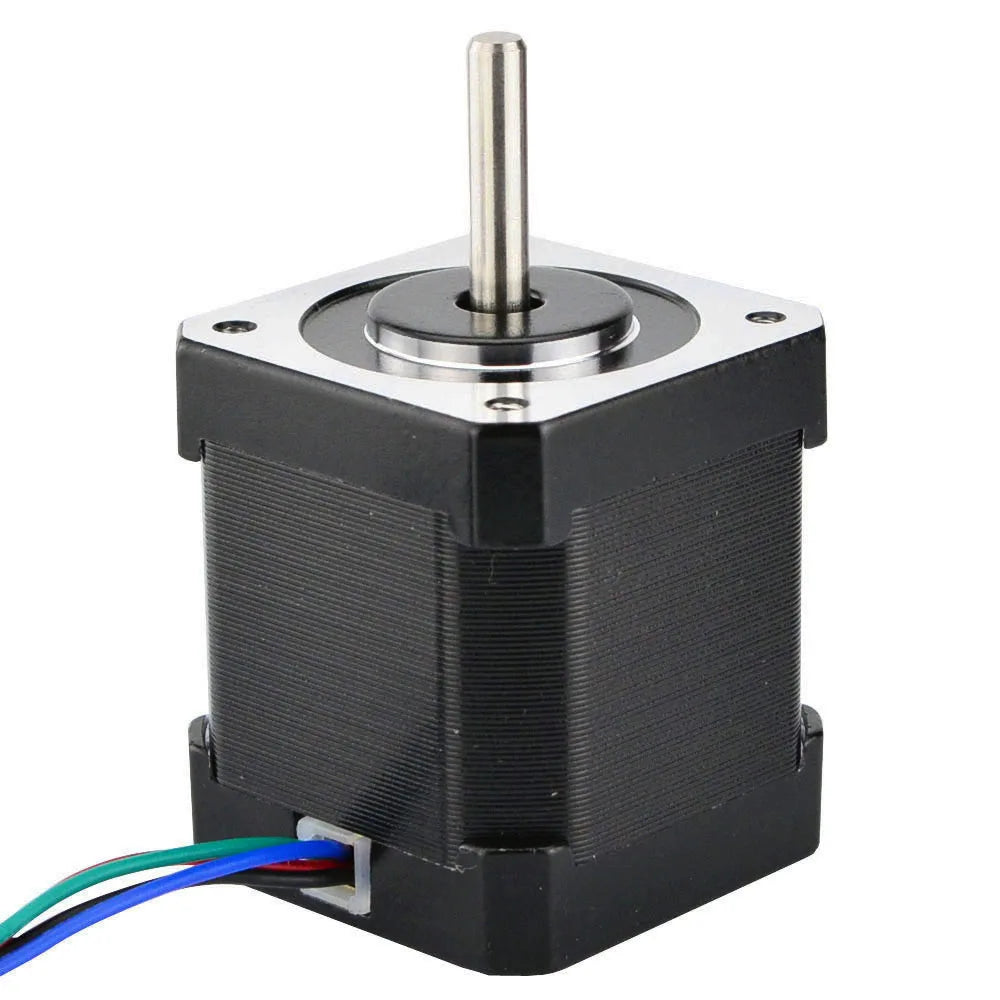

Nema 17 Stepper Motor 48mm 42BYGH Stepping Motor 2A (17HS19-2004S1) Motor 4-lead 1m Cable for 3D Printer CNC XYZ Motor

Nema 17 Stepper Motor 48mm 42BYGH Stepping Motor 2A (17HS19-2004S1) Motor 4-lead 1m Cable for 3D Printer CNC XYZ Motor

$61.99
$92.00 $61.99
-32% OFF Sold out
Shipping calculated at checkout.
โ˜…โ˜…โ˜…โ˜…โ˜…
(8963 Reviews) 100K+ Sold Out
Compact Live Reviews
Shanna Gillem

Shanna Gillem โญโญโญโญโญ

"Excellent quality and super fast delivery!"

Dabielle Walker

Dabielle Walker โญโญโญโญโญ

"Very nice product, highly recommended!"

Androw Jone

Androw Jone โญโญโญโญโ˜†

"I highly recommend this store!"

Ships From
Shaft Diameter

SPECIFICATIONS

Application: 3D printers, Reprap project, CNC machine

Brand Name: STEPPERONLINE

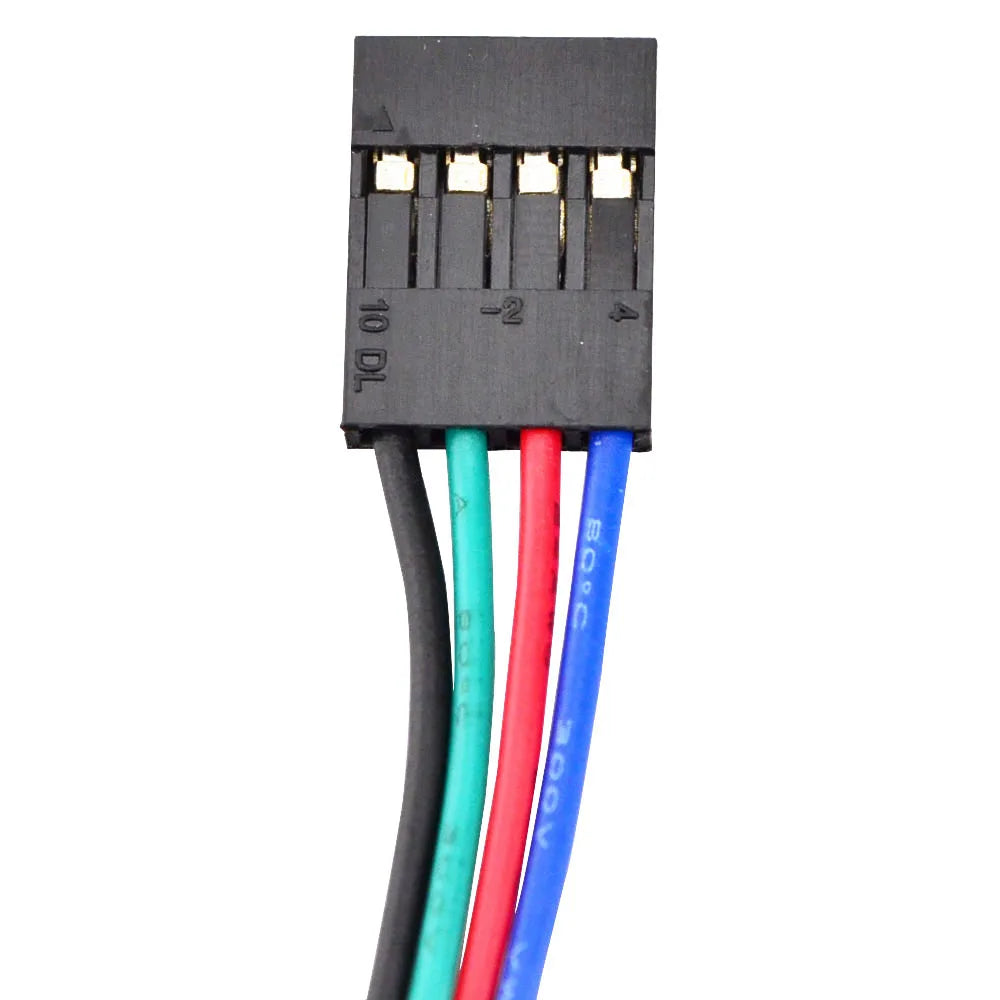

Cable: 1m 4 wires w/ connector

Certification: ce,ROHS

Current / Phase: 2A

Hign-concerned Chemical: None

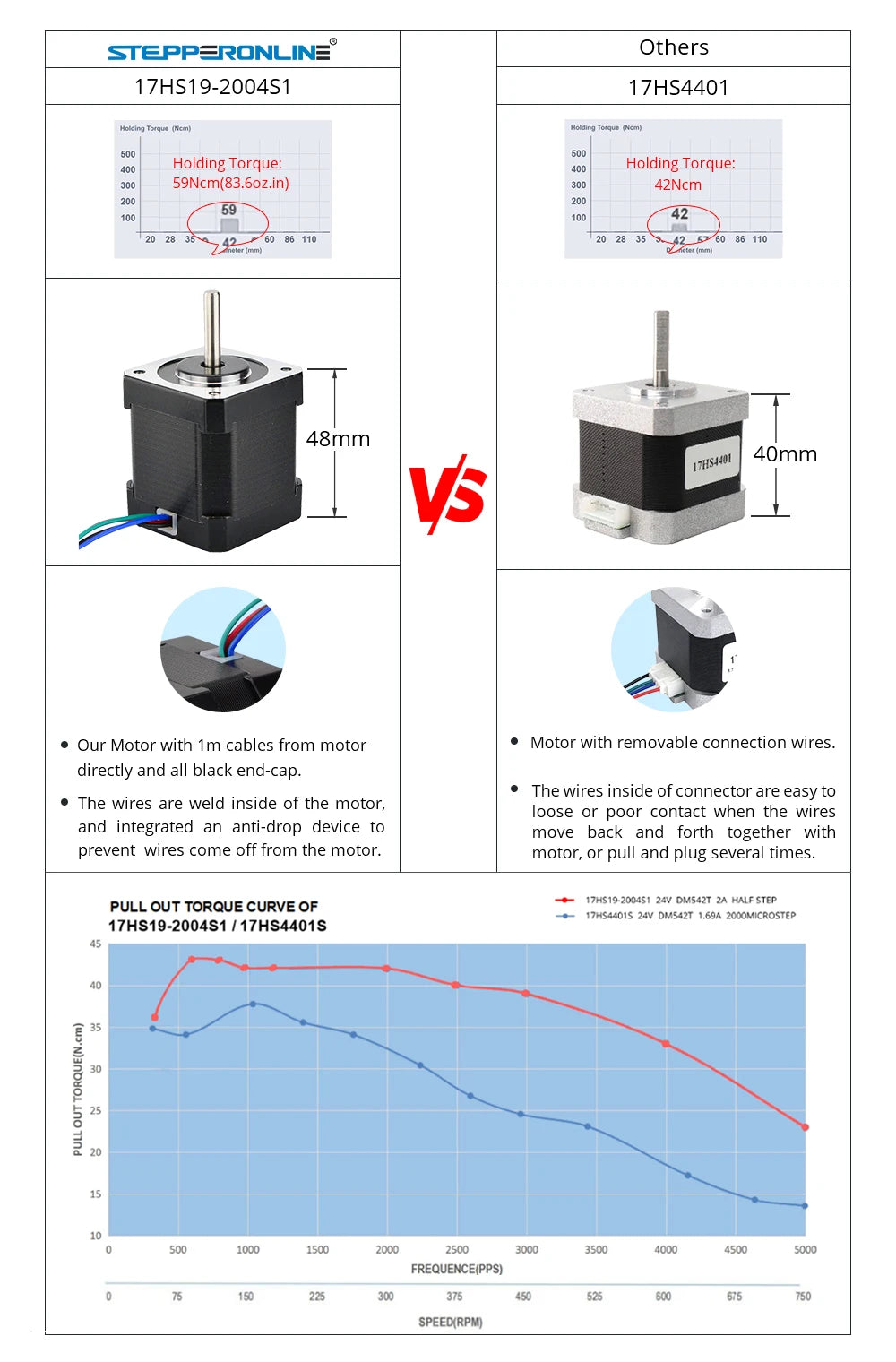

Holding Torque: 84oz.in/59Ncm

Inductance: 3.0mH ยฑ 20%(1KHz)

Model Number: 17HS19-2004S1

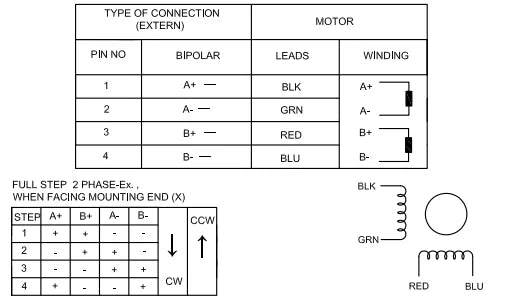

Number of Lead: 4

Origin: Mainland China

Phase: 2

Phase Resistance: 1.4ohms

Rotor inertia: 82 g-cm2

Shaft Diameter: 5mm

Shaft Type: D cut

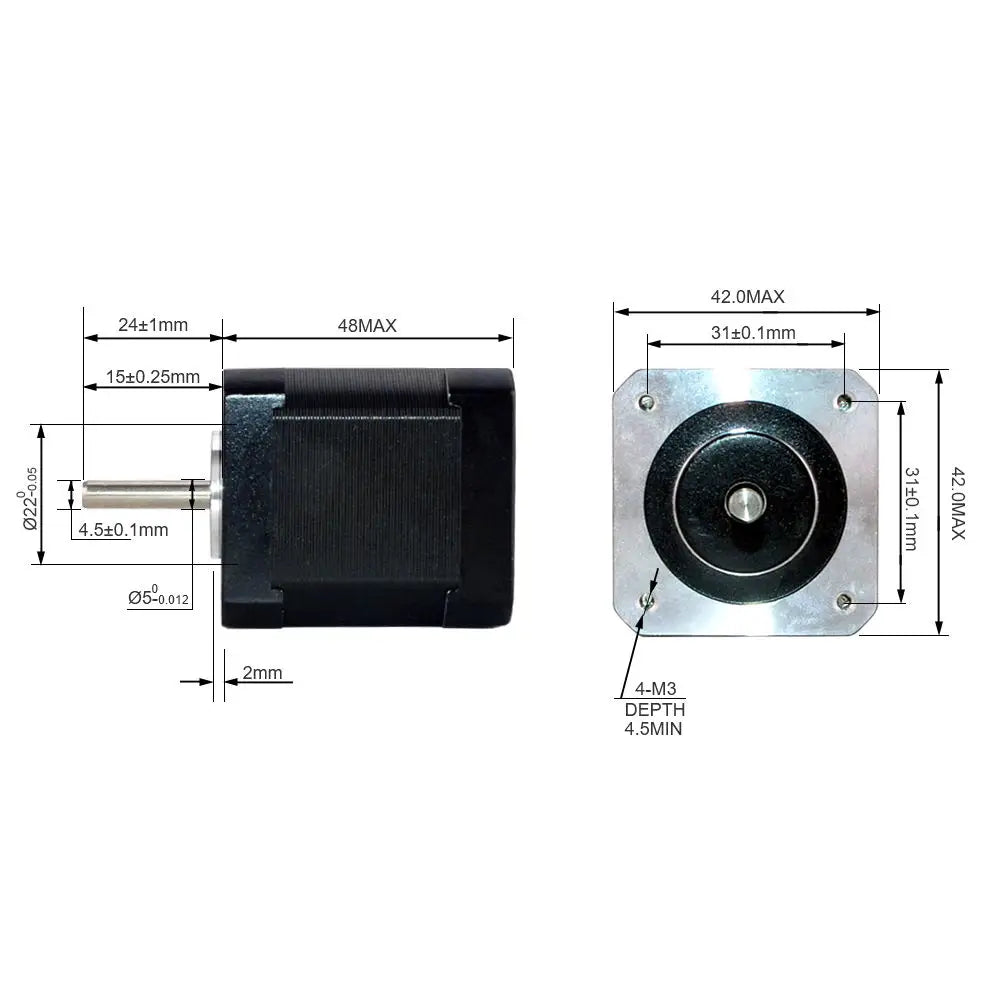

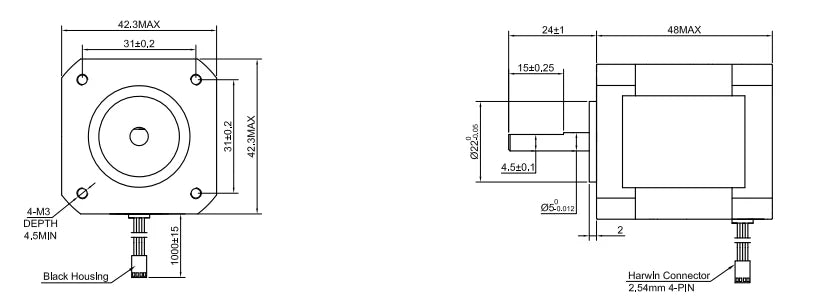

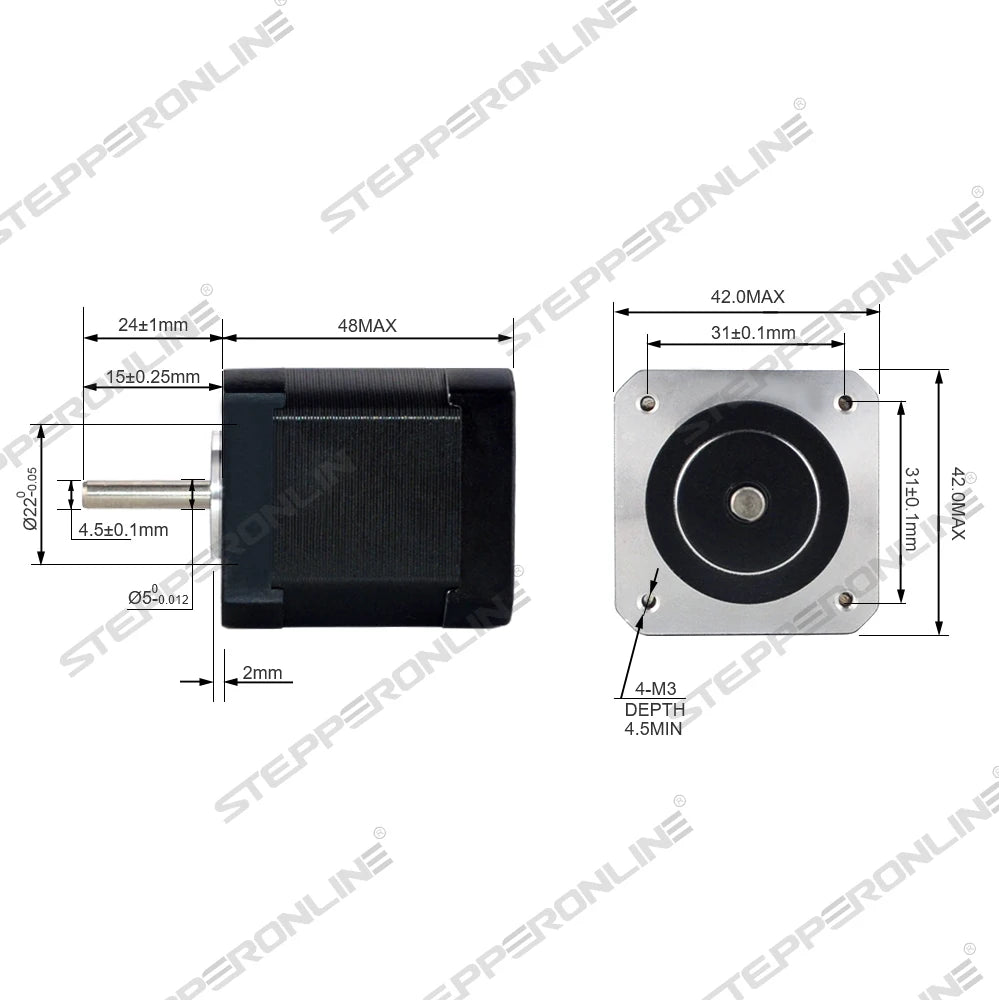

Size: 42*42*48mm

Step Angle(degrees): 1.8degree

Type: Hybrid

Warranty: 1 Year

is_customized: Yes
